3067460 Piston Engine 306-7460 Ring 1632428 Pump Group Piston Cylinder Liner 163-2428

Brand Name : Caterpillar

Model Number : C15, TH35-C15T BODY

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : C15, TH35-C15T BODY

product name : 3067460 BODY AS-PISTON Caterpillar parts

cross code : CA3067460 306-7460 3067460

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

3067460 BODY AS-PISTON Caterpillar parts C15, TH35-C15T BODY

Product Description

CA3067460
306-7460
3067460

PETROLEUM PACKAGE TH35-C15T
TRUCK ENGINE C15 Caterpillar

C15 On-highway Engine BXS00001-UP

  • 360-7718: PARTS GP-ENGINE OVERHAUL » SEBP37221428
  • 360-7718: PARTS GP-ENGINE OVERHAUL » SEBP37221428

PARTS GP-ENGINE OVERHAUL

360-7718 PARTS GP-ENGINE OVERHAUL
CONTAINS BRONZE, SILVER, GOLD, PLATINUM OVERHAUL KITS, FOR HIGH LOAD APPLICATION OVER 140,000 POUNDS WILL REQUIRE TOP PISTON RING 237-0194 TO BE REPLACED WITH 247-6130, PER ENGINE NEWS ARTICLE SEBD6798-00
FOR USE WITH C15 ENGINE ARRANGEMENTS, MXS1-99999, 435-550HP, NXS1-UP, 435-550HP, BXS1-UP, 435-550HP
FIELD INSTALLATION

Information

Pos. Part No Qty Parts name Comments
356-1428 Y [1] PARTS GP-ENGINE OVERHAUL (SILVER)
357-4645 Y [1] PARTS GP-ENGINE OVERHAUL (BRONZE)
10R-9923 [1] KIT-ENGINE OVERHAUL (GOLD)

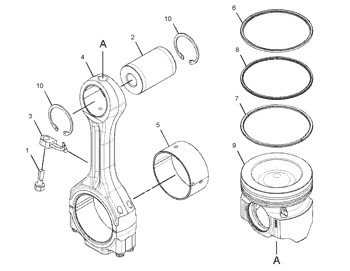

10R-3304 [6] CYLINDER PACK AS
(EACH INCLUDES)
238-4737 [1] RING-PISTON (INTERMEDIATE)
250-2940 [2] RETAINER-PIN
306-7460 [1] BODY AS-PISTON
180-7350 [1] PIN-PISTON
10R-2117 [1] ROD AS-CONNECTING
7N-2043 [2] DOWEL
213-3217 M [4] BOLT (M11X1.25X84-MM)
229-6259 [1] BEARING
160-9874 [1] KIT-GASKET (SINGLE CYLINDER LINER)
9L-5854 [1] BAND-FILLER (130.2-MM ID)
110-2220 [1] SEAL-LINER
142-6217 [1] SEAL-O-RING
142-7072 [1] SEAL-LINER
197-9322 [1] LINER-CYLINDER BLOCK
237-0194 [1] RING-PISTON-TOP
238-0294 [1] RING-PISTON (OIL)
357-4645 Y [1] PARTS GP-ENGINE OVERHAUL (BRONZE)
10R-9925 [1] KIT-ENGINE OVERHAUL (PLATINUM)
348-7743 [12] BRIDGE-VALVE
357-4645 Y [1] PARTS GP-ENGINE OVERHAUL (BRONZE)
0R-9449 Y [1] PUMP GP-ENGINE OIL
10R-1273 [6] INJECTOR GP-FUEL
(EACH INCLUDES)
9X-7317 [1] SEAL-O-RING
10R-9236 [1] KIT-INJECTOR
100-6165 [1] SPRING-NOZZLE
230-3728 [1] SEAL-O-RING
230-3775 [1] SEAL-O-RING
10R-3304 [6] CYLINDER PACK AS
(EACH INCLUDES)
238-4737 [1] RING-PISTON (INTERMEDIATE)
250-2940 [2] RETAINER-PIN
306-7460 [1] BODY AS-PISTON
180-7350 [1] PIN-PISTON
10R-2117 [1] ROD AS-CONNECTING
7N-2043 [2] DOWEL
213-3217 M [4] BOLT (M11X1.25X84-MM)
229-6259 [1] BEARING
160-9874 [1] KIT-GASKET (SINGLE CYLINDER LINER)
9L-5854 [1] BAND-FILLER (130.2-MM ID)
110-2220 [1] SEAL-LINER
142-6217 [1] SEAL-O-RING
142-7072 [1] SEAL-LINER
197-9322 [1] LINER-CYLINDER BLOCK
237-0194 [1] RING-PISTON-TOP
238-0294 [1] RING-PISTON (OIL)
10R-4389 [1] CYLINDER HEAD GP
211-3122 [24] SPRING-VALVE (INNER)
247-9908 [24] SPRING-VALVE (OUTER)
153-7024 [12] VALVE-EXHAUST
9S-8006 [1] PLUG (7/8-14-THD)
[1] CYLINDER HEAD AS
152-7582 [12] INSERT-VALVE SEAT (EXHAUST)(STANDARD)
167-0642 AB INSERT-VALVE SEAT (0.76-MM OS, EXHAUST)
170-4737 AB INSERT-VALVE SEAT (0.51-MM OS, EXHAUST)
166-2904 [12] SEAL-O-RING
175-3617 [12] INSERT-VALVE SEAT (INLET)(STANDARD)
167-0643 AB INSERT-VALVE SEAT (0.76-MM OS, INLET)
170-4738 AB INSERT-VALVE SEAT (0.51-MM OS, INLET)
216-5582 [7] BUSHING (STANDARD)
217-0751 AB BUSHING (0.25-MM OS)
217-0752 AB BUSHING (0.762-MM OS)
261-3429 AB BUSHING (1.778-MM OS)
261-3430 AB BUSHING (1.27-MM OS)
263-4920 [6] SLEEVE-INJECTOR (INLET)
3B-0623 [17] PLUG-CUP
3B-0645 [20] PLUG-CUP (32.08-MM OD)
8T-6757 [3] PLUG-PIPE
9X-7430 [6] SEAL-O-RING
122-7375 [24] GUIDE-VALVE (STANDARD)
122-0447 AB GUIDE-VALVE (0.51-MM OS)
122-8612 AB GUIDE-VALVE (0.13-MM OS)
236-5605 [12] VALVE-INLET
163-2478 [24] SEAL-VALVE STEM
186-2001 [24] ROTOCOIL AS
2A-4429 [48] LOCK-RETAINER
6I-0928 [24] WASHER-SPECIAL
6V-3251 [1] SEAL-O-RING
6V-6609 [2] SEAL-O-RING
9S-8005 [2] PLUG (3/4-16-THD)
10R-8660 [1] PUMP GP-WATER
[1] PUMP GP-WATER
336-2212 [1] SEAL AS-WATER PUMP
136-1107 [1] RETAINER
153-1256 [1] SEAL-LIP TYPE
195-0319 [1] GEAR (74-TEETH)
203-3831 [1] PLUG-CUP
246-3130 [1] SHAFT-WATER PUMP
108-7930 [1] BEARING AS-ROLLER
1B-7182 [4] BOLT (5/16-18X1.25-IN)
246-3129 [1] IMPELLER-PUMP
303-8698 [1] HOUSING AS-PUMP
111-2721 [1] PLUG-FELT
299-7436 [1] KIT-GASKET (WATER PUMP)
235-5678 [1] SEAL-O-RING
8T-5917 [1] SEAL-O-RING
109-0077 [1] SEAL-O-RING
122-3772 [1] SEAL-O-RING
125-0434 [1] SEAL-INTEGRAL
197-8006 [1] SEAL-O-RING
