Rsc-150 Ring Rsc15E1 Ring Set Piston Engine 9T-4180 Cylinder Liner 9T4180 Piston

Brand Name : Caterpillar

Model Number : 572R, D7H, D7R, D8N PISTON

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 572R, D7H, D7R, D8N PISTON

product name : 9T4180 PISTON Caterpillar parts

cross code : CA9T4180 9T-4180 9T4180

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

9T4180 PISTON Caterpillar parts 572R, D7H, D7R, D8N PISTON

Product Description

CA9T4180
9T-4180
9T4180

.

PIPELAYER 572R
TRACK-TYPE TRACTOR D7H D7R D8N Caterpillar

572R Pipelayer 2HZ00001-UP (MACHINE) POWERED BY 3306 Engine

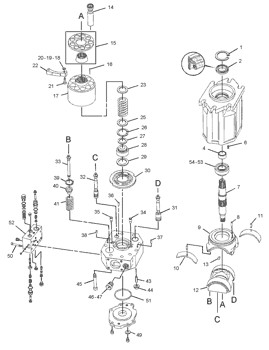

  • 161-4457: PUMP GP-PISTON » SEBP28420334

PUMP GP-PISTON

161-4457 PUMP GP-PISTON
S/N AAC1-UP; 2HZ1-UP
PART OF 159-3982 PUMP GP-PISTON

Information

Pos. Part No Qty Parts name Comments
1. 8T-9599 [1] RING-RETAINING
2. 9T-4846 [1] SEAL-LIP TYPE
4. 9T-4173 [1] RING-SEAL
6. 183-5916 [1] PIN-SPRING
7. 426-2724 [1] SHAFT-DRIVE
8. 101-2862 [1] DOWEL
9. 139-3274 [1] CRADLE
10. 144-5663 [1] SET-BEARING
11. 8U-9480 [2] PIN
12. 139-3277 [1] SWASHPLATE
13. 9T-5039 [1] PLUG
14. 9T-4180 [9] PISTON
15. 9T-4136 [1] PLATE-RETRACTION
16. 8U-5556 [3] BEARING AS-NEEDLE
17. 141-0828 [1] BARREL AS
18. 9T-4844B [2] SHIM (0.05-MM THK)
19. 9T-4843B [2] SHIM (0.075-MM THK)
20. 9T-4842B [2] SHIM (0.1-MM THK)
21. 5A-3604M [8] BOLT-SOCKET HEAD (M8X1.25X25-MM)
22. 9T-4175 [2] BEARING
23. 183-5926 [1] SPACER (43.5X60X5-MM THK)
25. 9T-4182 [1] SPACER (39X61.4X5-MM THK)
26. 1L-4775 [1] RING-RETAINING
27. 9T-4138 [1] SPACER (35X46X4-MM THK)
28. 9T-4840 [1] BEARING
29. 9T-4834 [1] SPACER (58.5X66X1-MM THK)
30. 6E-1450 [1] PLATE
31. 9T-4179 [1] PISTON-ACTUATOR
32. 9T-4184 [1] PISTON-ACTUATOR
33. 8U-9153 [1] PISTON
34. 9T-8635 [1] DOWEL
35. 9T-8636 [1] DOWEL
36. 187-4513 [1] ROLLER
37. 099-3047 [1] DOWEL
38. 9T-4133 [1] DOWEL
39. 8C-3110 [1] RING-RETAINING
40. 9T-4139 [1] RETAINER-SPRING
41. 9T-4188 [1] SPRING-ACTUATOR
43. 8T-9531M [2] SETSCREW-SOCKET
44. 9T-4901M [2] NUT (M12X1-THD)
45. 8T-9536M [8] BOLT-SOCKET HEAD (M14X2X100-MM)
46. 9S-8008 [1] PLUG (1-1/16-12-THD)
47. 3D-2824 [1] SEAL-O-RING
49. 8T-4224 [2] WASHER-HARD (8.8X16X2-MM THK)
50. 8T-9535M [4] BOLT-SOCKET HEAD (M8X1.25X60-MM)
51. 2H-6338 [1] SEAL-O-RING
52. 9T-4816Y [1] VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)
53. 9W-5837 [1] CONE-BEARING
54. 9W-5838 [1] CUP-BEARING
