7I-7180 Engine 1163254 Tube As Oil Jet Cylinder Liner 7I7180 Piston Ring 116-3254

Product Categories
Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department
Contact Now

7I-7180 Engine 1163254 Tube As Oil Jet Cylinder Liner 7I7180 Piston Ring 116-3254

  • 1
  • 2

Brand Name : Caterpillar

Model Number : 3508, 3512, 3516, G3508, G3508B, G3512, G3516, G3516B, G3516C, G3516E, G3520B, G3520C, PMG3516 JET

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 3508, 3512, 3516, G3508, G3508B, G3512, G3516, G3516B, G3516C, G3516E, G3520B, G3520C, PMG3516 JET

product name : 1163254 JET AS-PISTON COOLING Caterpillar parts

cross code : CA1163254 116-3254 1163254

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

1163254 JET AS-PISTON COOLING Caterpillar parts 3508, 3512, 3516, G3508, G3508B, G3512, G3516, G3516B, G3516C, G3516E, G3520B, G3520C, PMG3516 JET

Product Description

CA1163254
116-3254
1163254

GAS ENGINE G3508 G3508B G3512 G3516 G3520B
GEN SET ENGINE 3508 3512 3516 G3508 G3512 G3516 G3516B G3520B
GENERATOR SET 3508 3512 3516 G3508 G3512 G3516 G3516B G3516C G3516E G3520B G3520C
INDUSTRIAL ENGINE 3508 3512 3516
LOCOMOTIVE ENGINE 3512 3516
MARINE ENGINE 3508 3512 3516
POWER MODULE PMG3516
VEHICULAR ENGINE 3508 3512 3516 Caterpillar

G3516B Generator Set E6T00001-UP

371-0838 PISTON & ROD GP
S/N E6T1-UP
11:1 COMPRESSION RATIO
PART OF 386-1579 MODIFICATION AR-ENGINE

Information

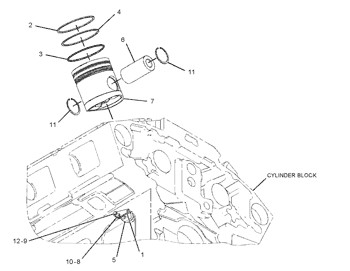

Pos. Part No Qty Parts name Comments
1. 1W-4188 [1] RETAINER AS (FOR USE WITH 1-PC PISTON ONLY)
6V-3537 [1] DOWEL
2. 7E-7581 [1] RING-PISTON (TOP)
3. 7W-2221 [1] RING (OIL)
4. 8N-1234 [1] RING (INTERMEDIATE)
5. 116-3254 [1] JET AS-PISTON COOLING (FOR USE WITH 1-PC PISTON ONLY)
6. 138-8506 [1] PIN-PISTON
7. 197-3765 [1] BODY AS-PISTON
8. 0T-0102 [1] BOLT (3/8-16X0.625-IN)
9. 1B-2790 [1] BOLT (5/16-18X1.375-IN)
10. 5M-2894 [1] WASHER-HARD (10.2X18.5X2.5-MM THK)
11. 8N-7296 [2] RETAINER-PIN
12. 9M-1974 [1] WASHER-HARD (8.8X16X2-MM THK)
R REMANUFACTURED PART MAY BE AVAILABLE
